UltraLow Energy Saving Water-Cooled -86°C Freezer (959L/33.8cf, variable speed, 3 adjustable shelves, 4 inner doors) (220V)

Secured Shopping

Best security features

UltraLow Energy Saving Water-Cooled -86°C Freezer (959L/33.8cf, variable speed, 3 adjustable shelves, 4 inner doors) (220V)

Description

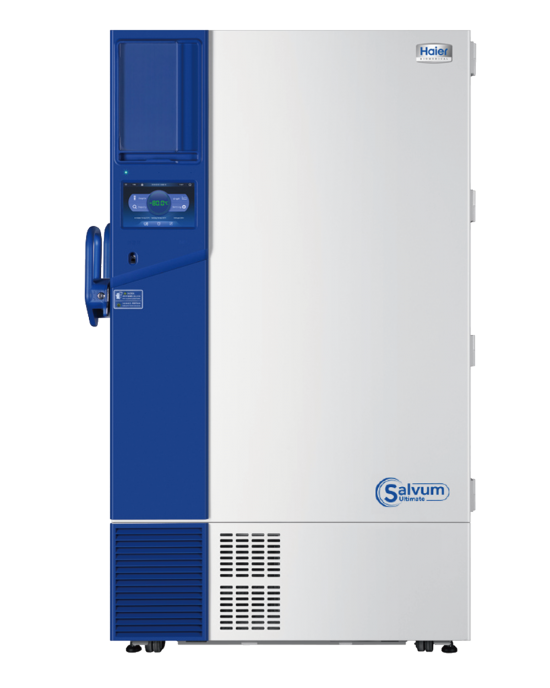

Haier Biomedical UltraLow Energy Saving Water-Cooled -86°C Freezer (Model: DW-86L959W, 959L/33.8cf) achieves a 90% reduction in energy and heat emissions. It operates with a daily power consumption of only 8.7 kWh, making it ideal for high ambient environments with limited air conditioning options.

Suitable for clinical, medical, scientific research, quarantine and other departments to store items under low temperature conditions. Applicable for universities, hospitals, disease prevention and control centres, blood stations, scientific research institutes, electronics and chemical enterprise laboratories and biomedical engineering research institutes. For storage of biological products and biological samples such as red and white blood cells, viruses, bone and bacteria. Also used for electronic devices and other materials used for cryogenic tests.

Warranty: 5-Year Parts and Labor; 10-Year on Compressor Parts

Download Brochure [pdf]

Key Features

	Microcomputer control system Microcomputer control, 10' inch LCD temperature display, display precision 0.1ºC, inside temperature adjustable set point -40-86ºC. Displays operating data such as temperature, voltage and ambient temperature.
	Stand-alone sample management system The software allows users to manage sample inventory within the freezer.
	Memory USB with up to 10 years of the life temperature monitoring data can be downloaded & exported as needed.
	Alarm back-up battery When powered off , two lithium batteries can maintain the refrigerator LCD screen for 22 hours.
	Multiple safety locks The handle incorporates a keylock and facility for padlock. There is the option to have an electromagnetic lock and fingerprint recognition. Multiple of options for users to ensure samples are secure..
	Superior thermal insulation performance The door is 90mm VIP + polyurethane foam with four seals and a single seal on each inner door reduces loss of internal cold air.
	Multiple alarm functions Including high/low temperature,hot condenser,power failure,low battery,high ambient temperature and door ajar.
	Networking function R485 interface is standard, which secures multi-refrigerator networking.

Specifications

Technical Data
Model	DW-86L959W
Cabinet Type	Upright
Climate Class	N
Cooling Type	Direct Cooling (Water Cooling)
Defrost Mode	Manual
Refrigerant	HC
Sound Level (dB(A))	47
Performance
Cooling Performance (°C)	-86
Temperature Range (°C)	-40 ~ -86
Temperature Uniformity (°C)	+- 3°C
Control
Controller	Microprocessor
Display	LCD Touch Screen
Electrical Data
Power Supply (V/Hz)	208~230 / 50 / 60
Electrical Current (A)	7
Dimensions
Capacity (L/Cu.Ft)	959 / 33.9
Net/Gross Weight (approx)	450 ~ 485 kg (992.1 ~ 1069.2 lbs)
Interior Dimension (WxDxH)	40.0 in x 28.2 in x 51.6 in
Exterior Dimension (WxDxH)	51.0 in x 39.3 in x 78.0 in
Packing Dimension (WxDxH)	55.5 in x 45.7 in x 86.0 in
Alarms
High/Low Temperature	Yes
Hot Condenser	Yes
Power Failure	Yes
Sensor Error	Yes
Low Battery	Yes
High Ambient Temperature	Yes
Door Ajar	Yes
Accessories
Castor	Yes
Foot	Yes
Porthole	Yes / 2
Shelves/Drawers	3 / 4
USB Interface	Yes
Remote Alarm	Yes
5V Power Supply Port	Yes
Temperature Recorder	Optional
RS485 Port	Yes
CO₂ Backup System	Optional
LN₂ Backup System	Optional
Others
Certification	EC
